New cover lens and OCA bonding for 4.3" TFT displays

Inelco Hunter has introduced two new versions of a range of 4.3" TFT displays. The new model options incorporate a cover lens and OCA bonding. The combination of OCA bonding with the new 1mm cover lens provides very high impact resistance – the impact rating is IK04 and the surface Hardness is 7H.

The JXT480272T017-ZBC06 features IPS, 20K MTBF, 500 nits. IC FT5446U and 1mm cover lens. The JXT480272T017-ZBR includes all the aforementioned features and also features OCA bonding.

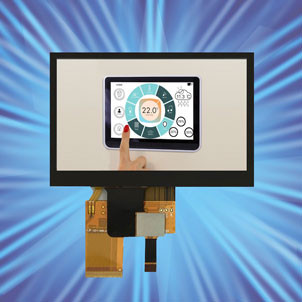

The 4.3" JXT480272T017 family of TFT displays features a resolution of 480(RGB) × 272 dots with a full viewing angle, a transmissive normally black screen and 500cd/m² brightness. It features a 24-bit RGB interface and operates within a temperature range of -20C to +70C. The rated lifetime is 20,000 hours (MTBF) at standard conditions.

The display is powered by an ST7282A driver IC, which offers robust performance, ensuring the module is ideal for demanding environments. Suitable applications include medical devices, industrial control systems, home security, smart home control, measuring instruments, and home appliances.
