Next-gen smart battery charger suitable for multiple applications

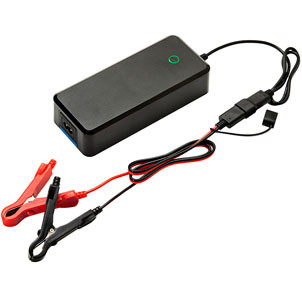

Mascot has introduced its latest innovation: the Model 4340, a next-generation, high-performance battery charger designed for lead acid, Li-Ion, LiFePO4, and NiMH batteries and suitable for medical, industrial, and consumer applications.

Engineered for maximum performance and reliability, the charger employs an MCU-managed three-stage charging profile, optimising battery life and runtime. It also features smart wake-up capabilities for deeply discharged batteries and soft-start charging, delivering low current until normal voltage levels are restored – crucial for preserving battery health.

Ideal for demanding sectors such as medical technology, telecom, energy storage, and E-Mobility, the device ensures fast, safe, and efficient charging. With certifications including EN 60601-1 ed. 3.2, EN 60601-1-11 (Home Healthcare), and UL approval, it fulfils the highest standards for medical and professional-grade use.

The charger is fully customisable via the company's Configurable Battery Charger (CBC) toolkit, enabling users to set charge parameters through a PC interface easily. Configuration can also be accomplished in the field. A range of custom options, including connectors, cords, IP-rated enclosures, open-frame formats, branding, and additional certifications, is available upon request. The charger's advanced three-stage process restores full battery voltage, supplies saturation charging to maximise capacity, and automatically stops when the battery is fully charged – ensuring peak performance and extended runtime. A three-colour LED indicator provides intuitive feedback for charging, error, and standby status. An optional wall-mount bracket enhances installation flexibility.

With its combination of versatility, reliability, intelligent charging, and certifications to the most stringent safety and EMC norms, the 4340 sets a new standard for professional battery charging.

Key technical specifications of the 4340:

• Charger versions: Lead acid, Li-Ion, LiFePO4, NiMH batteries
• Max output power: 80W
• AC input voltage: 90-264VAC
• Safety standards: Medical EN 60601-1 ed. 3.2

Home Health Care EN 60601-1-11

Battery Charger EN 60335-2-29.

A/V and Comm. tech: IEC 62368-1

• EMC standards: EN 55014-1 and –2

Emission EN 61000-6-3

Immunity EN 61000-6-1,

Medical EN 60601-1-2

• Input terminal: Two-pin IEC60320 (C8) std., three-pin or fixed mains cord on request
• IP-grade: 4X (AC inlet) or 44 (fixed mains cord)
• Weight: 400g
• Dimensions: 172.5mm × 73mm × 42mm
