Four-channel 12-bit digital oscilloscope series offers an attractive price/performance

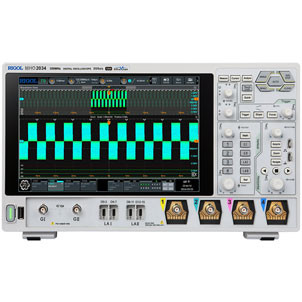

Saelig Company, Inc. now offers the RIGOL MHO2000 series – the new generation of four-channel high-resolution, mixed signal digital oscilloscopes based on the Centaurus platform. It provides 12-bit resolution (up to 16-bit in high-res mode), bandwidths up to 350MHz, four analog channels, and 16 digital channels for debugging with an optional probe.

The 200MHz MHO2024 and the 350MHz MHO2034 oscilloscopes are designed with a 2GSa/s sampling rate for all channels at 12-bit vertical resolution, with a waveform capture rate of up to 1,000,000 wfms/s. Internal memory of up to 500Mpts allows drilling down to fine details in waveform captures. An integrated two-channel 50MHz AWG is also optionally available.

The series features automatic measurements for up to 41 parameters, statistics, XY cursors, a Pass/Fail function with hardware mask, a six-digit frequency counter, and an integrated DVM. Advanced software options include Power analysis, Automotive bus trigger/decoding (CAN-FD, LIN), avionics bus trigger/decoding (MIL-STD-1553), FlexRay trigger/decoding, and audio bus trigger/decoding (I2S).

The device features:

• 12-bit vertical resolution (up to 16-bit in high-res mode)
• Bandwidth: 200MHz (MHO2024), 350MHz (MHO2034)
• Four analog channels + 1 EXT, 16 digital channels (with optional probe)
• Sampling rate: up to 2GSa/s
• Arbitrary waveform generators (2x 50MHz, optional)
• Power analysis (optional), histogram, Bode plot, protocol decoding
• 10.1” touch screen 1280x800 pixels
• 256-level digital intensity display, digital fluorescence technology
• Up to 1,000,000 wfms/s in fast recording mode
• Connectivity: USB Host/Device, LAN, HDMI

The MHO2000 digital oscilloscope series is created to satisfy advanced design, debugging, and test demands at an attractive price.
