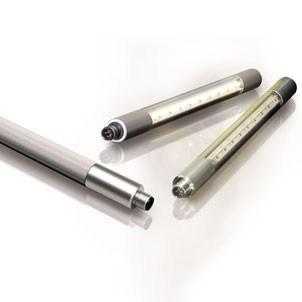

Precise white light and RGB signalling combined in a single luminaire

Modern industrial processes demand lighting solutions that can do more than provide brightness. With the LED luminaires from binder, users can now access technology that combines workplace illumination and status indication in a single system. Whether it is precise white light for detailed illumination or clear process signals within the RGB spectrum, these luminaires improve safety, ergonomics, and efficiency in various applications.

The LED luminaires are available in various colour temperatures, enabling the light to be adapted to the specific application – from daylight-like illumination for long working periods to high-contrast light for particularly precise inspection tasks.

The integrated daylight white light, with a 4,000K colour temperature, ensures uniform, flicker-free illumination. With a high colour rendering index (CRI > 90), even the smallest details can be reliably identified during testing and inspection processes. This creates optimum conditions for quality control and ergonomic working, even during long shifts.

The luminaire offers the full RGBW colour spectrum, enabling clear status indication. White light signals smooth operation, indicating to operators that all processes are running without disruption. If a fault occurs, the red light immediately warns and alerts personnel to ensure rapid intervention. In addition, further colours can be used flexibly, for example to visualise processes or implement individual signal codes. In this way, the luminaire combines two functions in one device, eliminating the need for additional signalling technology or increased installation effort. Furthermore, the company also offers customised versions from addressable LEDs to special wavelengths such as UV or IR light, which are especially suited for inspection and sensor applications.

The LED luminaires are designed for harsh industrial environments. Rated to protection class IP69K, they withstand dust, water, oils, chemicals, and intensive cleaning processes. The robust housing prevents loose parts and meets the highest hygiene standards, making it ideal for use in the food industry. With a service life of up to 50,000 operating hours, the luminaires ensure long-term operational reliability.

The LED luminaires are suitable for a wide range of applications, as they can provide precise illumination for machines and workstations, support production and inspection processes, as well as testing and measuring stations, and ensure optimal lighting conditions in CNC systems and production lines. They also excel in the food and packaging industries, impressing with their reliability and durability while fulfilling the highest standards for cleanliness and safety in cleanroom and hygiene applications.

“Thanks to their compact designs and standardised M12 connectors, these solutions are easy to integrate and can be used in a variety of ways,” explains Dieter Sandula, product manager at binder.

With their combination of precise white light and flexible RGB signalling, these industrial LED luminaires create safe and ergonomic working conditions. At the same time, they facilitate clear visual communication of machine statuses, serving a dual function that enhances process efficiency and improves workplace safety.

Technical Data

• A combination of white light and RGB signalling in one luminaire
• Colour temperature 4,000 K (daylight white), CRI > 90
• Flicker-free, homogeneous illumination
• Robust housing, protection class IP69K with stainless steel components
• Service life of up to 50,000 hours
• Temperature range: –25C to +60C
• Available in different lengths: 250mm, 358mm and 412mm
• Transparent and frosted covers
• Easy integration: A-coded M12 connector
