Unique Intelligent Modular SiC inverter platform now available

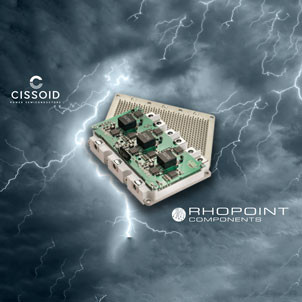

Rhopoint Components has announced the availability of the Cissoid CMT-PLA3SB12340A SiC MOSFET Intelligent Power Module.

Applications include power systems for EVs such as cars, buses, trucks and heavy-duty industrial plant, e-boats, e-aviation and industrial motor control.

CISSOID has been a leader in power semiconductor solutions since 2011, providing multi-phase, high-current power switching modules, motor control systems and software across various power needs.

Key features include:

Three-phase inverter with anti-parallel diodes
Drain-to-source breakdown voltage of 1200V
Max continuous current of 340A/260A at Tc=25C/90C
Low on resistance of 3.25mΩ typical
Junction temperature: -40C to +175C

The unique module has an open-source design, enabling developers to customise it to meet their needs. Reference designs and bench-top or on-board packaging are available to shorten new product development lead-times. The SiC inverter platform is based on a suite of hardware and software products, including a SiC Intelligent Power Module, an Inverter Control Module and Functionally Safe E-Motor Control Hardware and Software from Intel Automotive Solutions.

Cissoid works in partnership with customers and offers:

• Modular and open platforms – Footprint-compatible power modules make it easy to vary up and down in power range, according to the needs across vehicle families. Controller solutions can be supplied or swapped for in-house developments.
• Easy, proven solution – A proven design, tested across a wide range of use cases, up and running within days.
• Highly Modifiable – Most parts of the design, from the semiconductor components to the software and the mechanical design, can be adapted to the application’s needs.
• Components to Software – Single supplier from individual components over control boards to motor control software and four reference designs.
• Single Point of Contact – for technical support on hardware and software

Rhopoint is an authorised partner for over 25 industry-leading manufacturers worldwide, providing an extensive range of stocked lines and fully customised solutions to meet customer needs. With highly skilled field-based sales engineers, technical expertise is backed by an efficient sales and distribution operation, covering its entire product range from its UK-based facility.
