Fully integrated and intelligent TFT display module supports Android and Linux

30-12-2022 | Review Display | Industrial

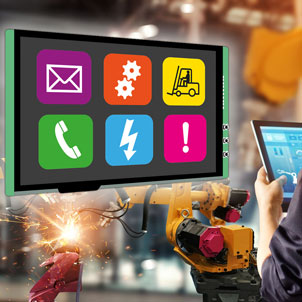

Review Display Systems (RDS) has released a fully integrated, intelligent display module. The DMG10600T101-33WTC utilises a Rockchip RK3288 ARM-based SoC featuring a 32-bit Cortex A-17 core running an Android operating system.

The intelligent display module features a 10.1" IPS TFT LCD with WSVGA resolution (1024px x 600px) and a brightness specification of 310cd/m². 24-bit RGB colour data supports a colour palette of up to 16.7M colours. A fully integrated PCap touchscreen allows ease of use, implementing a GUI.

A host of integrated interface and peripheral connections include two RS232 serial ports, one RS485 serial port to connect and communicate with external devices, an Ethernet 10/100Mbps interface, three USB interfaces, a SIM card slot and a 4G module slot. On board, memory includes 8GB of flash memory and 2GB DDR3 RAM with an SD card expansion slot supporting up to 64GBytes (maximum).

Justin Coleman, display business manager, RDS, said, "The intelligent display module provides a highly versatile, configurable module that offers a wealth of standard integrated features and functionality. These features coupled with the ability to uniquely configure and customise with standard 'off-the-shelf' Android apps or user-developed APK files enable application or user-specific hardware to be simply and easily created."

Extra on-board functionality includes Wi-Fi IEEE 802.11Bb/g/n 2.4Ghz, Bluetooth connectivity, an HDMI interface, a MIPI/USB camera interface, a microphone interface, a 3.5mm headphone socket, and a dual left/right speaker interface.

The intelligent display module currently supports the Android 8.1 operating system. Further Android apps and APK files can be downloaded to improve functionality and configure the intelligent display module for application-specific tasks. This allows the device to be uniquely configured and customised for specialised customer requirements.

The intelligent display module has mechanical outline dimensions of 257mm (l) x 148.1mm (w) x 23.2mm (h), with the 10.1" display supplying an active display area of 222.72mm (w) x 125.28mm (h).
