Motherboard with integrated NPU offers the future of embedded intelligence

Motherboard with integrated NPU offers the future of embedded intelligence

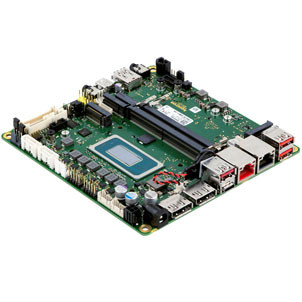

Rutronik is extending its portfolio of components for AI-supported applications with the Kontron K4021-U mSTX. This is a powerful Mini-STX motherboard based on the latest Intel Core Ultra 7 and 5 Meteor Lake U SoCs and featuring an integrated NPU for AI acceleration. This enables up to 20 times higher performance per watt for computationally intensive applications, such as image processing, automation, and digital signage.

Additional highlights include advanced graphics and display capabilities that support up to four simultaneous 4K60 HDR displays or two 8K displays. The platform also provides robust connectivity and expandability, with four M.2 slots for storage and Wi-Fi modules, and GPIO, two COM ports, Thunderbolt 4, and USB 3.2 Gen2, which round out its profile.

The motherboards are designed for 24/7 operation and can be employed continuously with reliable performance in a temperature range from 0C to 60C. Kontron's commitment to quality is evident in the design, the use of high-quality components and strict lifecycle management, which makes the platforms excellent for use in harsh industrial environments, among other things.

The performance of the boards can be further improved with memory components from the Rutronik portfolio, such as DDR5 memory modules or high-performance M.2 SSDs.

Matching accessories from Kontron, such as the SMARTCASE S502 chassis kit, a compact and robust housing for embedded implementation, and active heat sinks for optimised temperature management in continuous operation, are also available.

Benefits at a glance:

• Intel Core Ultra 7/5 processors ('Meteor Lake U') with integrated NPU
• Up to 20 times higher performance per watt for dedicated AI acceleration
• DDR5-5600 SODIMM memory supports up to 96GB
• Intel Xe graphics with support for up to 4× 4K60 HDR or 2× 8K displays
• Versatile connectivity: Thunderbolt 4, USB 3.2 Gen 2, HDMI 2.1, DisplayPort 1.4a
• Four M.2 slots for flexible expansion
• Industrial grade: 24/7 operation, 0C to +60C
• Compact Mini-STX format, made in Germany

Typical application examples include POS/POI, production optimisation, medical, digital signage, and kiosk solutions.
