Space-saving current sense chip resistor series for high power density

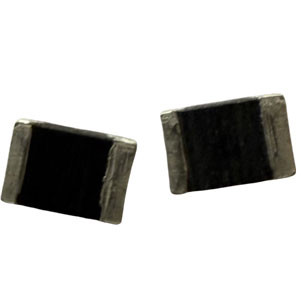

The CSSH0805 Series current sense chip resistor from Stackpole Electronics Inc. delivers 1W power handling in a compact 0805 footprint, allowing substantial PCB space savings. With resistance values as low as 0.5mΩ and TCR from 50ppm to 100ppm, it matches the performance of larger 1206 and 2010 resistors. This all-metal chip resistor delivers excellent stability and reliability under industry-standard testing conditions, making it ideal for high-efficiency, space-constrained applications.

This innovative CSSH0805 current sense chip resistor is designed for high-power density applications including power modules, frequency converters, battery management systems, as well as automotive and EV controls.
