Expanded line of high-power RF adapters for SOSA-aligned systems and 5G applications

05-06-2025 | SV Microwave | Internet of Things

SV Microwave's BMB RF Adapters are the latest expansion of its BMB product offering. Developed to support the testing and calibration of SOSA-aligned open systems, these high-power push-on adapters provide a reliable solution for verifying RF performance.

These adapters offer a male or female BMB interface on one end and transition to threaded connector series such as SMA and 2.92mm on the other, ensuring robust connectivity across 5G communications, mil-aero, open system designs, and test and measurement applications.

Features/benefits

  • Blindmate and push-on interface for easy mating
  • High-power push-on adapters
  • Durable and reliable
  • DC up to 22GHz

Applications

  • 5G communications
  • Mil-aero
  • Board-to-board solutions
  • Test and measurement
  • Open system designs

Part number and description


Part No.

Description

1149-6414

BMB Female to 2.92mm Female Adapter

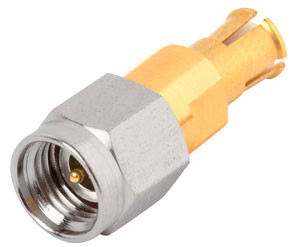

1149-6413

BMB Female to 2.92mm Male Adapter

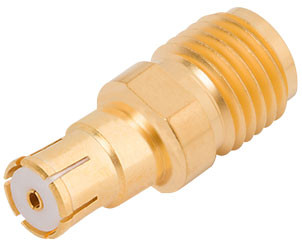

1149-6412

BMB Female to SMA Female Adapter

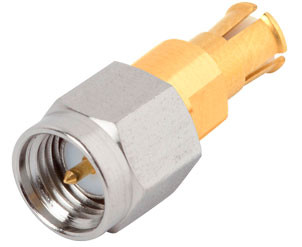

1149-6411

BMB Female to SMA Male Adapter

1149-6422

BMB Male to 2.92mm Female Adapter, FD

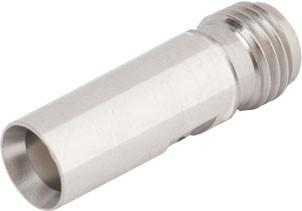

1149-6421

BMB Male to 2.92mm Female Adapter, SB

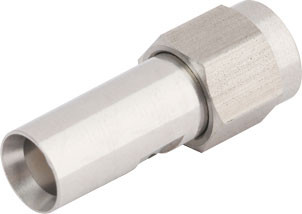

1149-6420

BMB Male to 2.92mm Male Adapter, FD

1149-6419

BMB Male to 2.92mm Male Adapter, SB

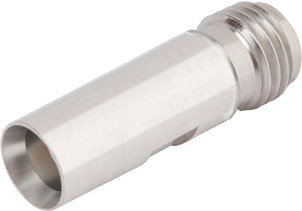

1149-6418

BMB Male to SMA Female Adapter, FD

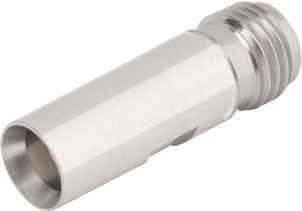

1149-6417

BMB Male to SMA Female Adapter, SB

1149-6416

BMB Male to SMA Male Adapter, FD

1149-6415

BMB Male to SMA Male Adapter, SB
