Reference design for low-cost mil spec filter allowing use of COTS DC-DC modules

P-Duke has released the reference design displaying how the new MCF Filter can be employed in conjunction with its COTS DC-DC converters and meet the mil standards MIL-STD-1275D and MIL-STD-461G. The reference design is available now from Luso Electronics.

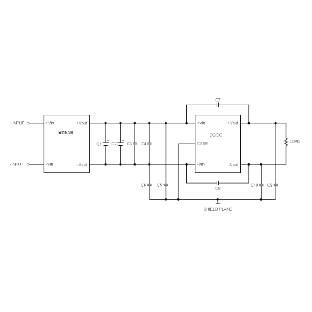

With the addition of a few caps and MLCC, the filter, together with its HAE200W 1/2 brick DC-DC converter, can provide up to 240W of power in a compact, cost-effective design.

In the current climate, samples are available on the DC-DC and filter modules, with production lead times being more than a reasonable 20 weeks.

Data is available to download from the website and our power specialists are more than happy to discuss your requirements and support your design needs.
