Evaluation board for SAW filter optimised for GPS applications

22-11-2022 | Mouser Electronics | Test & Measurement

Qorvo QPQ1065EVB01 Evaluation Board, available now from Mouser, is a demonstration and development platform for the QPQ1065 AltNav Band Pass SAW Filter. The QPQ1065 is a compact, high-performance SAW filter optimised for GPS applications. Designed for the rejection of unwanted signals, it also has excellent power handling capability for low-power transmitters. No matching components are needed, making the PCB design and implementation simple.

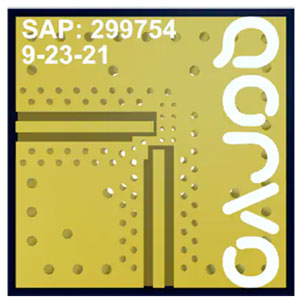

The evaluation board features a pre-mounted QPQ1065 in a 1.4mm x 1.2mm laminate over mould package. The evaluation board offers an example application circuit, enabling rapid prototyping when included into existing designs.


By Seb Springall
