Compact ultra-wideband and omnidirectional antennas

26-08-2022 | Saelig | Passives

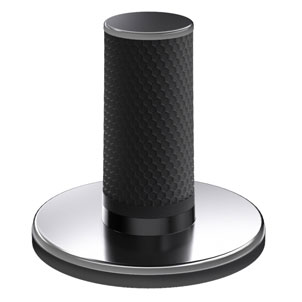

Saelig Company, Inc has introduced Aaronia OmniLOG PRO Omnidirectional Antennas. This series of compact, ultra-wideband omnidirectional antennas is ideal for radial isotropic use from 150MHz up to 18GHz, encompassing most RF sources such as LTE, GSM, UMTS, and WLAN, etc. These cost-effective antennas are specified for 1W cw receive and 100W cw high-power transmit, making them ideal for broad-range spectrum analyser measurements, interference search, frequency monitoring, and tasks such as equipment evaluation or countermeasure challenges.

The compact 4.3” x 1.4” range consists of four models in SMA or N versions (PRO 1030: 150MHz-3GHz, PRO 1060: 150MHz-6GHz, PRO 10100:150MHz-10GHz, PRO 10200: (150MHz-18GHz) to cover RF sources from FM to K-band, radio and TV signals, DECT, Bluetooth and WLAN, product EMI, etc.).

Each antenna has a full two-year warranty and is equipped with an IP65 housing suitable for outdoor use. A magnetic antenna base on the SMA version allows for temporary installation, for example, on a car roof. Comprehensive calibration data in 50MHz steps can be downloaded to enable highly accurate measurements with any spectrum analyser.

Examples include Omnidirectional measurement applications; spectrum monitoring, including non-public frequency bands; examining interference-free mobile communications; and interference detection.
